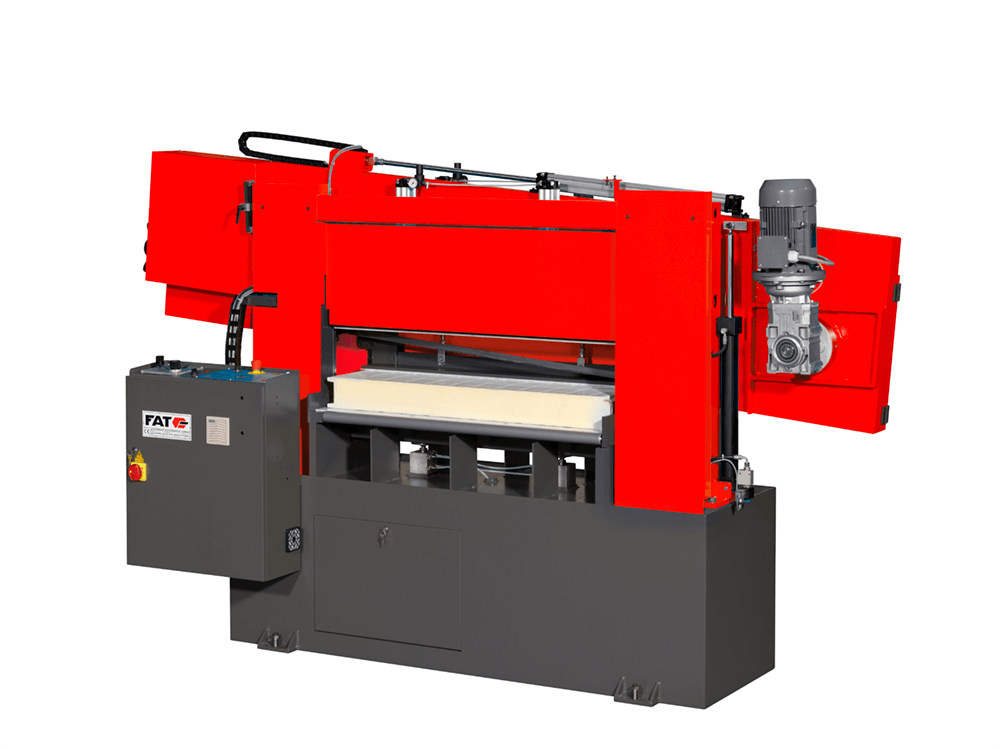

1250 SA
» Semi-automatic band saw built for 90º cutting of grating and foam panels (model 1250-27) and large-scale froam panelss (model 1250-34).
1250 SA
» Semi-automatic band saw built for 90º cutting of grating and foam panels (model 1250-27) and large-scale froam panelss (model 1250-34).
TECHNICAL FEATURES
Saw bow and base made of steel plate, welded and standardised, to guarantee the robustness of the structure and its resistance to deformation over time. Descent of the saw bow through linear ball bearings with an inclination of 10%. Pulleys made of spheroidal cast steel, mounted on large bearings. Helical gearbox reducer that ensures quiet operation, long life and more uniform running of the band for cleaner cuts and longer blade life. Tension of the mechanical band controlled by a limit switch. Frequency converter for Blade speed. Both band guidepost arms are are formed by a metal structure. The blade is guided laterally by hard metal platelets. Displacement of the band guidepost on a linear guideposts with ball slides accompanying the cut to prevent the saw from vibrating, thus achieving a cleaner cut. The moving arm is operated by a pneumatic cylinder, automatically keeping it in its ideal position. A cooling system sprays the blade with a special oil every 10-12 seconds for an optimal cut to avoid water dispersion in the workshop. The material is gripped by means of vertical clamps and the table. Material base built with Teflon. Double pulse safety cycle start. Specific PLC unit. Low voltage electrical system according to CE standards, 400 V 50 Hz 24 V DC for the solenoid valves Embossed enamel finish. Dry cutting device.
More information
Fill in the form to download the product sheet.
| MODEL 1250 SA | |||||
|---|---|---|---|---|---|
| MODEL | 1250 SA 27-34 | 1250 SA 80 | |||
| Cutting capacity | mm. 1250x300 | mm. 1250x800 | |||
| blade dimensions | mm. 6610x34x1,10 | mm. 8315x34x1,10 | |||
| Working table height | mm. 930 | mm. 930 | |||
| Blade motor power power | kw. 2,2 | kw. 2,2 | |||
| Hydraulic pump motor power | kw. 0,75 | kw. 0,75 | |||
| Blade speed | m/min 40-70 | m/min 40-70 | |||
| Cutting downfeed | mm/min 0-200 | mm/min 0-200 | |||
| Fast downfeed | mm/min 3500 | mm/min 3500 | |||
| Machine dimensions | mm. 3200x1200x2480 | mm. 3500x1200x2700 | |||
| Weight | Kg. 1700 | Kg. 1800 | |||
TECHNICAL FEATURES
Saw bow and base made of steel plate, welded and standardised, to guarantee the robustness of the structure and its resistance to deformation over time. Descent of the saw bow through linear ball bearings with an inclination of 10%. Pulleys made of spheroidal cast steel, mounted on large bearings. Helical gearbox reducer that ensures quiet operation, long life and more uniform running of the band for cleaner cuts and longer blade life. Tension of the mechanical band controlled by a limit switch. Frequency converter for Blade speed. Both band guidepost arms are are formed by a metal structure. The blade is guided laterally by hard metal platelets. Displacement of the band guidepost on a linear guideposts with ball slides accompanying the cut to prevent the saw from vibrating, thus achieving a cleaner cut. The moving arm is operated by a pneumatic cylinder, automatically keeping it in its ideal position. A cooling system sprays the blade with a special oil every 10-12 seconds for an optimal cut to avoid water dispersion in the workshop. The material is gripped by means of vertical clamps and the table. Material base built with Teflon. Double pulse safety cycle start. Specific PLC unit. Low voltage electrical system according to CE standards, 400 V 50 Hz 24 V DC for the solenoid valves Embossed enamel finish. Dry cutting device.
OPTIONAL ACCESSORIES
Saw bow rotation device 30º right-left.
Standard infeed/outfeed roller roller tracks, minimum 2000 mm
Millimetre rule for outfeed path.
DRO with mechanical stop for outfeed rollers.
Optical control device for saw position (laser).
